Save ReferenceRun Dialog

An ReferenceRun must be saved to the Knowledgebase before an Iteration for it may be submitted. The Save ReferenceRun dialog is presented in response to the following actions:

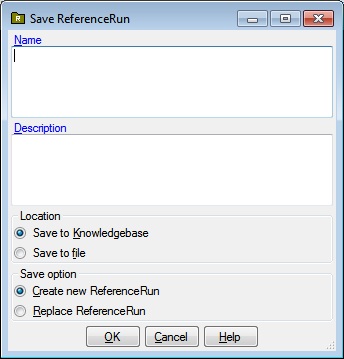

Save ReferenceRun Dialog Graphic

The Save ReferenceRun dialog has textboxes for the name and description of the ReferenceRun, a Location radio button group, a save option radio button group as well as OK, Cancel and Help buttons.

Name

This is the name associated with this ReferenceRun. Once saved to the Knowlegebase, this is the name that will appear under the ReferenceRuns node in the Knowledgebase Explorer application.

Description

This is an optional description associated with the ReferenceRun.

Location

The location group has a Save to knowledgebase radio button and a Save to file radio button.

Save To Knowledgebase

If this button is checked, the ReferenceRun will be saved to the Knowledgbase.

Save To File

If this button is checked, the ReferenceRun will be saved to a file. You will be prompted for a file name.

Save Option

The save option group has a Create new ReferenceRun radio button and a Replace ReferenceRun radio button.

Create New ReferenceRun

If this button is checked, a new ReferenceRun will be created in the Knowledgebase.

Replace ReferenceRun

If this button is checked, the ReferenceRun will be replaced in the Knowledgebase.

OK Button

Clicking OK will dismiss the Save ReferenceRun dialog, and may present more dialogs before saving the ReferenceRun.

Cancel Button

Clicking Cancel will dismiss the Save ReferenceRun dialog without saving the ReferenceRun.

Help Button
