Constraint Variable Dialog

The Constraint Variable dialog is presented in response to clicking the Variable button on the Constraint Side dialog. The Variable Selection dialog has a Cell box and OK and Cancel buttons. After the Variable Selection dialog is displayed, the Excel worksheet is enabled so you may click the cell that contains the Variable that you wish to enter into the constraint. Clicking a cell causes the cell address to be placed in the Select DesignSpaceVariable Cell box.

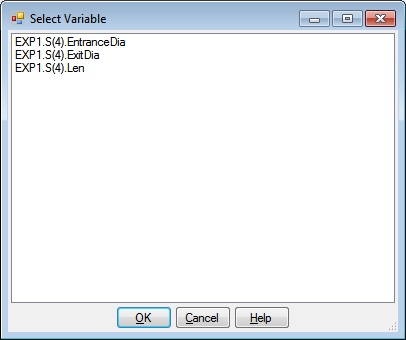

Constraint Variable Selection Dialog Graphic

The Constraint Variable dialog has an ApplicationModelVariable list as well as OK, Help and Cancel buttons.

ApplicationModelVariable List

This is a list of all ApplicationModelVariable names that represent VariableSpecifications that are eligible for the Constraint that you are editting.

OK Button

Clicking OK will dismiss the Constraint Variable dialog and place the selected ApplicationModelVariable name into the Constraint that you are editting.

Cancel Button

Clicking Cancel will dismiss the Constraint Variable dialog and the calling dialog will not be altered.

Help Button

Help will display this information.
