Prepare DOES ApplicationModel

The next step is to create the ApplicationModel. An ApplicationModel is a set of Variables used for a specific application of DOES. Creation of an ApplicationModel is a Knowledge Engineer task. Right-click on the ApplicationModel node and select Change from the menu to display the ApplicationModel dialog.

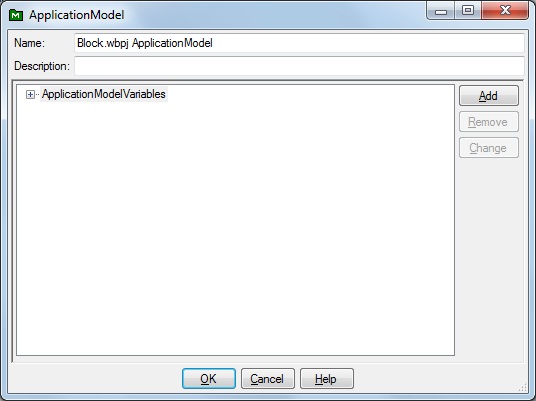

Blank ApplicationModel Dialog Graphic

Note that the DOES ANSYS Parameter Interface interface has supplied a name for the ApplicationModel. Right-click the ApplicationModelVariables node on the ApplicationModel dialog and select Add from the menu to display the ApplicationModelVariable dialog. Scroll to the bottom of the list of VariableSpecifications. Click Exp1.S(4).EntranceDia. Shift-click Exp1.S(4).Len and BMEP. The dialog will look like this:

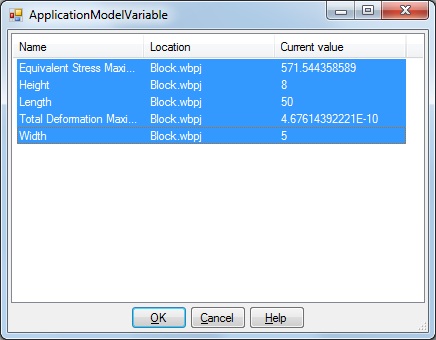

ANSYS Block ApplicationModelVariable Graphic

Click OK to return to the ApplicationModel dialog.

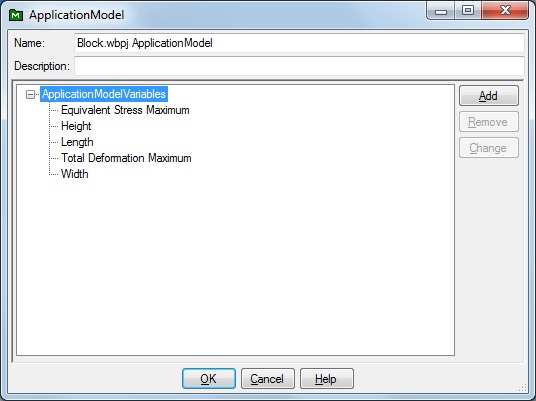

ANSYS Block ApplicationModel Graphic

Click OK to close the ApplicationModel dialog.
