Restore Workbench Project From Sample Archive

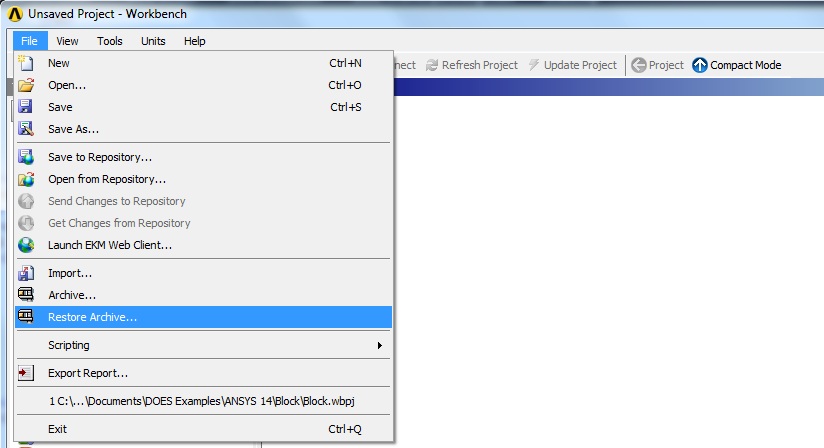

The first step is to restore the Block Workbench project from the DOES Samples. Start ANSYS Workbench and select File then Restore Archive... from the Workbench menu.

ANSYS Workbench Graphic

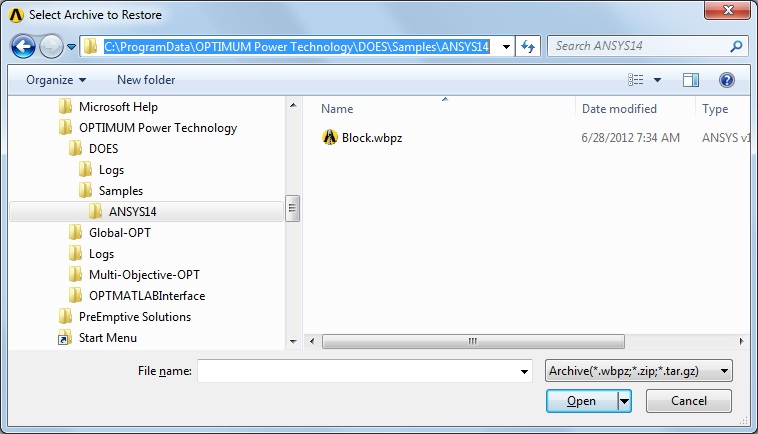

ANSYS Workbench responds with the Select Archive To Restore dialog. Navigate to the DOES sample folder at C:\ProgramData\OPTIMUM Power Technology\DOES\Samples\ANSYS14 and click Block.wbpz. Click the "Open" button.

ANSYS Select Archive Dialog Graphic

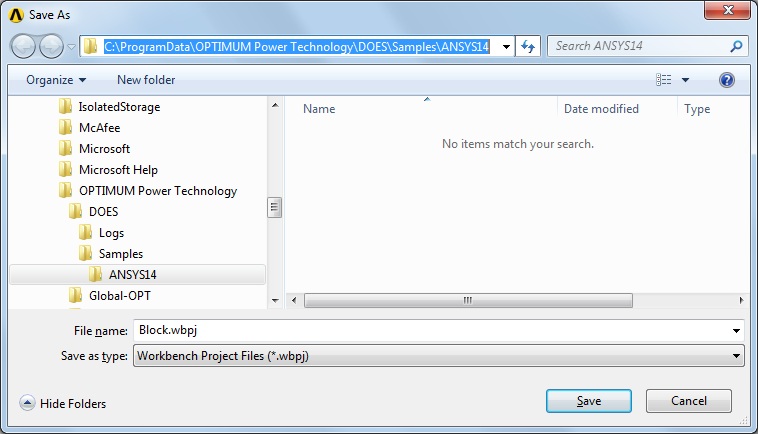

ANSYS Workbench responds with a Save As dialog. Navigate back to the DOES sample folder C:\ProgramData\OPTIMUM Power Technology\DOES\Samples\ANSYS14 if necessary and click the Save button.

ANSYS Save As Dialog Graphic

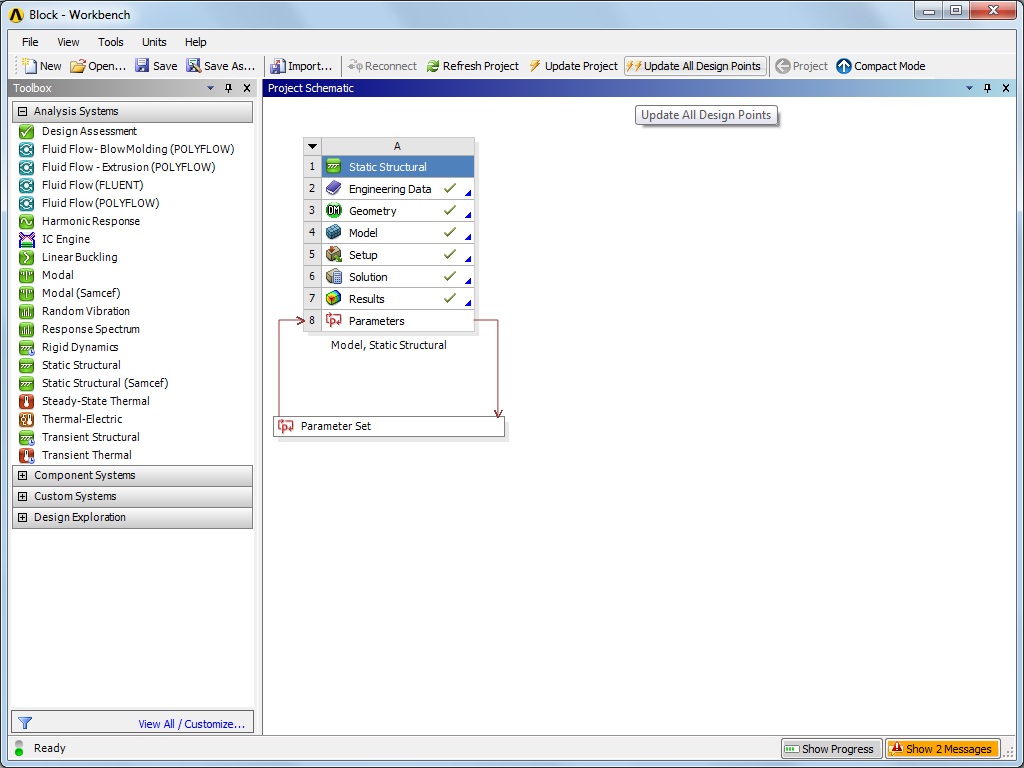

ANSYS Workbench restores the Archive to Block.wpbj and displays the Project Schematic when complete.

ANSYS Workbench Graphic

Close the ANSYS Workbench.
